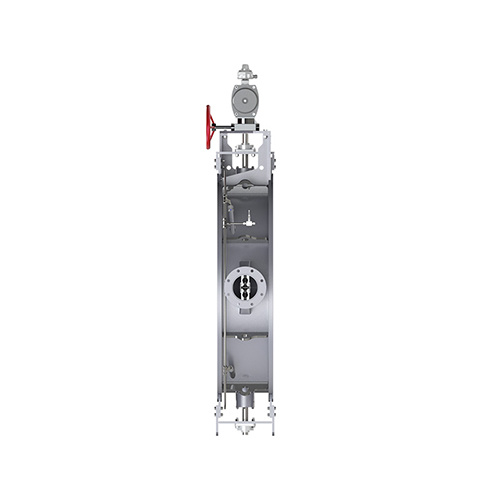

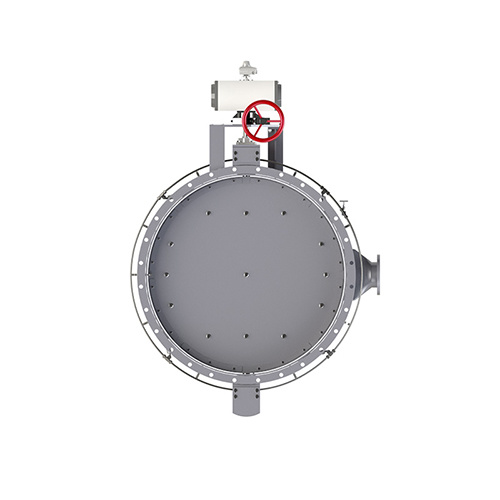

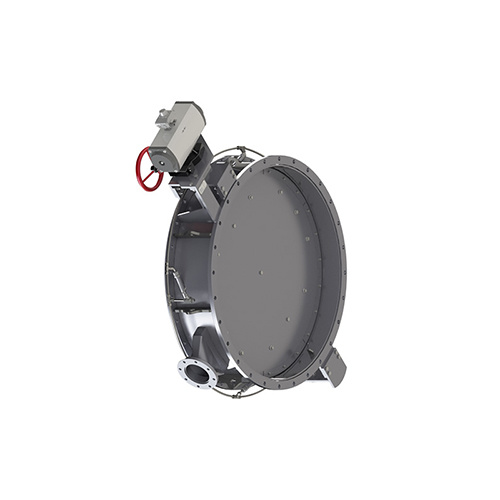

Two way flue gas valve
Application: fluid: air, gas and waste gas, CHP and incinerator device, air pollution prevention and filtering, power device, waste heat recovery system, boiler and burner, incinerator, etc
Key word:
Category:
Product Description
DN800-1600
Two-way Flue Gas Damper
Application:
Fluid: air, gas and waste gas,
CHP and incinerator unit,
Air pollution prevention and filtration,
Power device,
Waste heat recovery system,
Boiler and burner,
Incinerator, etc
Operating conditions:
The maximum operating temperature reaches 600 ℃,
The maximum working pressure reaches 0.5 kg,
The working pressure varies according to the diameter and temperature.
General characteristics:
On/off and position adjustment
The diameter range of three-way flue gas valve is 250-1600
The diameter range of two-way flue gas valve is 250-3200
End connection: flange type
Independent rolling bearing, easy to maintain
Double valve plate design, 0 leakage
Manual control device, convenient for emergency operation
Insulation thickness max. 100mm
Material Science:
Carbon steel CORTEN
Stainless steel 304
Stainless steel 316
Others as required
Applicable standards:
The design shall comply with EN12516-1, EN736-1, EN736-2, EN736-3
The materials shall comply with EN1503-1 and EN1503-2
End connection shall comply with ISO 5211-2017
Sign implementation GB12220-2015
Painting:
According to the manufacturer's standard
Carbon steel painted HilonTherm8150 silver or black
Test:
Implement the quality control procedure of Hangchang Technology
Drive:
Pneumatic/electric/electro-hydraulic drive
Driver connection shall comply with ISO5211-2017

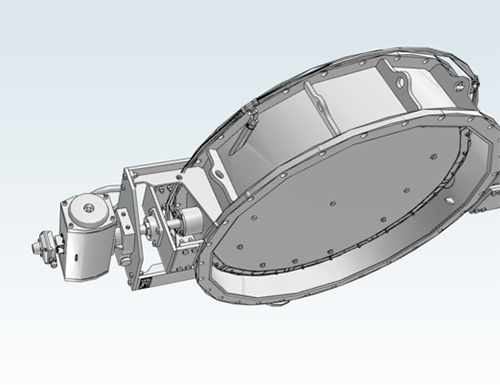

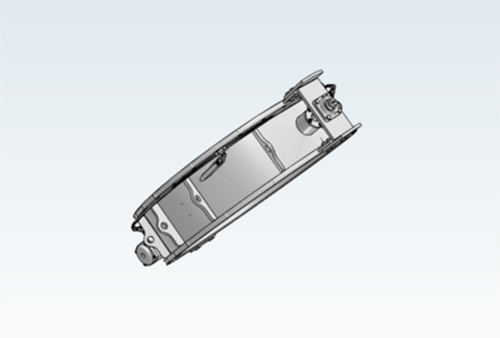

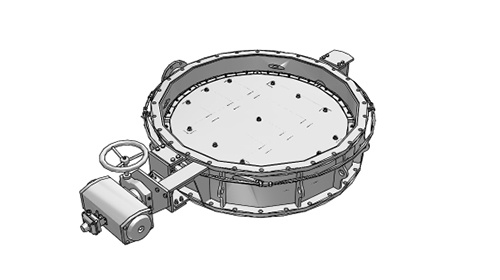

Related Products
